615006138421
Manufacturer:
Wurth Electronics
Mfr.Part #:
615006138421
Datasheet:
Description:

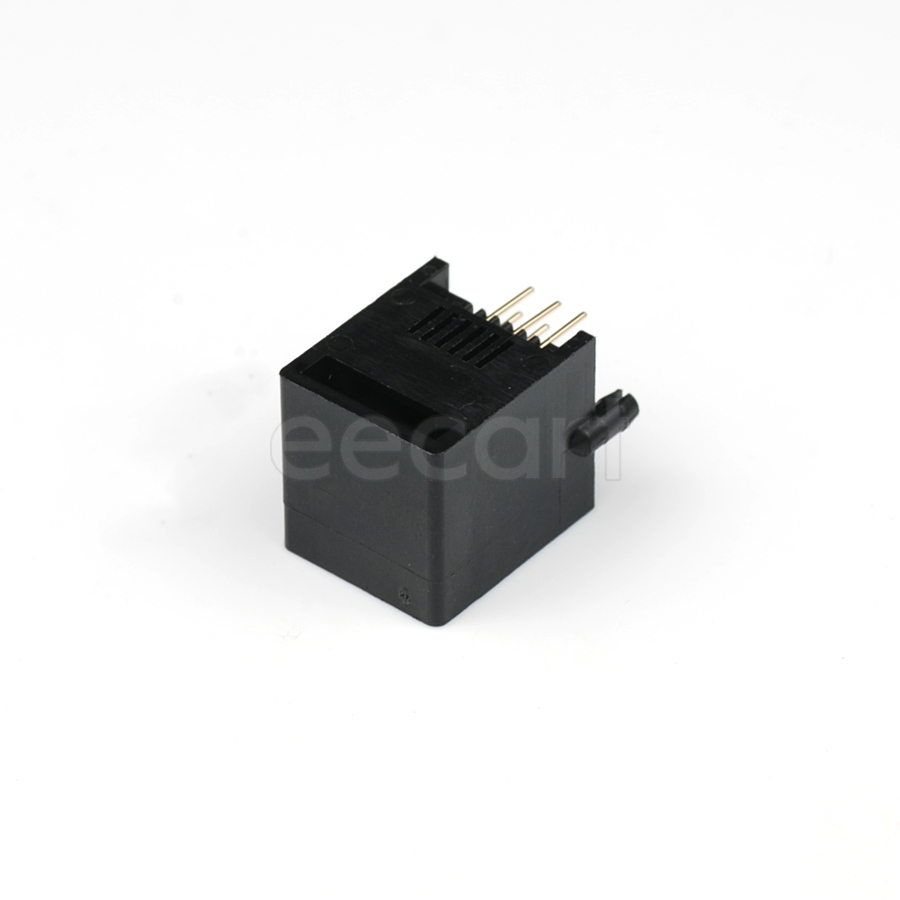

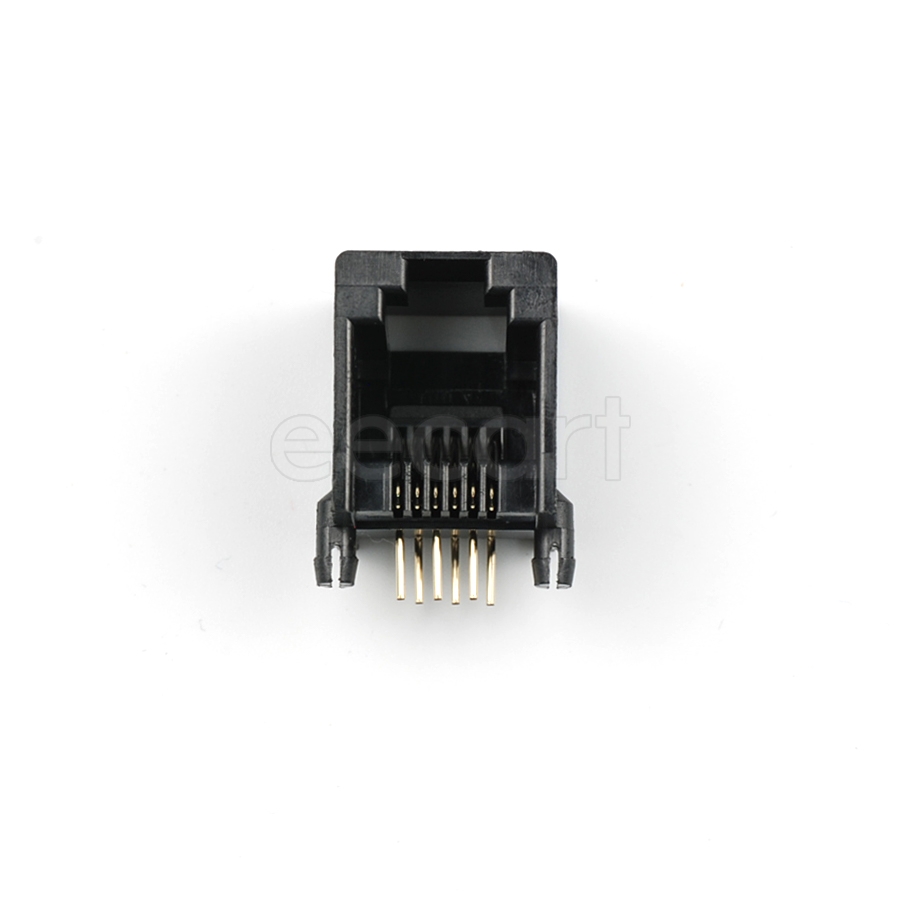

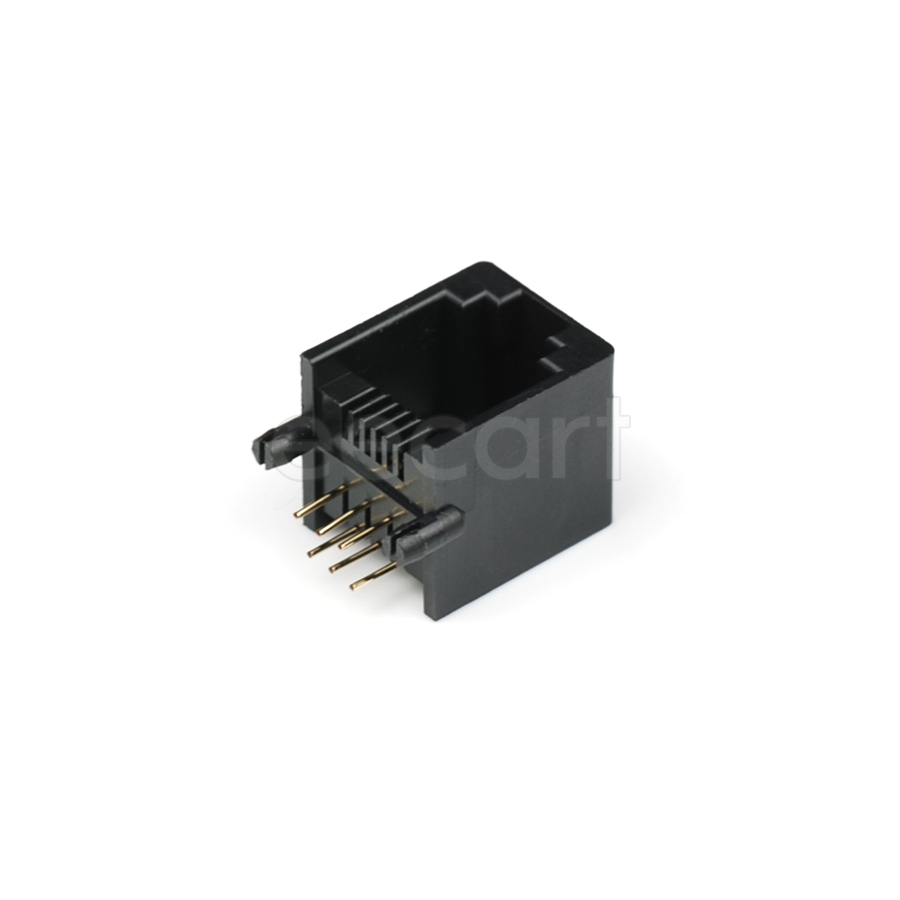

Modular / Ethernet Connectors Through Hole RJ25 Female Current Rating:1.5 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 12.2 mm |
| Width | 13 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 120 V |
| Height | 17.7 mm |
| Packaging | Tray |
| Depth | 13 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 120 V |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | Up |
| Connector Type | Socket |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ25 |
| Number of Positions/Contacts | 6P6C |
Stock: 1455
Distributors
pcbx
pcbxUnit Price$0.35635
Ext.Price$0.35635
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35635 | $0.35635 |
| 10 | $0.34916 | $3.49160 |
| 25 | $0.34265 | $8.56625 |
| 50 | $0.33625 | $16.81250 |
| 100 | $0.32323 | $32.32300 |
| 300 | $0.31612 | $94.83600 |
| 500 | $0.30916 | $154.58000 |
